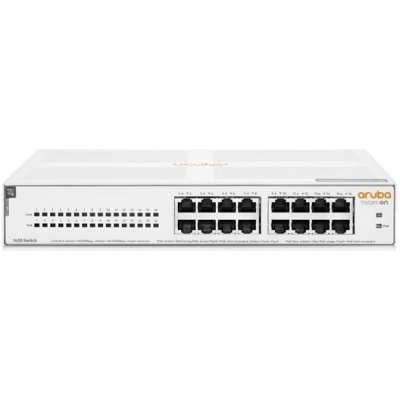

HPE R8R48A
0 %
HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430 (R8R48A) I/O ports and slots 16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only Dimensions 260(d) x 275(w) x 44(h) mm Weight 4.60 lb (2.09 kg) Processor and Memory 128Kb EEPROM; Packet buffer size: 2.0 Mb 100 Mb latency < 2.7 µSec 1000 Mb latency < 1.80 µSec Throughput... Celý popis
Koupit za 6 001 Kč- Od nejoblíbenějších
- Od nejlevnějších
- Od nejdražších
Popis
HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430 (R8R48A)
I/O ports and slots
16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Dimensions
260(d) x 275(w) x 44(h) mm
Weight
4.60 lb (2.09 kg)
Processor and Memory
128Kb EEPROM; Packet buffer size: 2.0 Mb
100 Mb latency
< 2.7 µSec
1000 Mb latency
< 1.80 µSec
Throughput (Mpps)
23.80 Mpps
Capacity
32 Gbps
MAC address table size
8192 entries
Reliability MTBF (years)
126.1
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity
15% to 90% @ 149°F (65°C) non-condensing
Altitude
up to 10,000 ft (3 km)
Acoustics
Fanless
Frequency
50Hz/60Hz
AC voltage
100-127VAC / 200- 240VAC
Current
1.7A /0.8A
Maximum power rating
147W
Idle power
5W
PoE power
124W Class 4 PoE
Power Supply
Internal Power Supply
Safety
- EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
- EN/IEC 62368-1, 2nd. & 3rd. Ed.
- UL 62368-1, 3rd. Ed.
- CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
- EN/IEC 60825- 1:2014 Class 1
Emissions
- EN 55032:2015/ CISPR 32, Class A
- FCC CFR 47 Part 15: 2018, Class A
- ICES-003, Class A
- VCCI-32, Class A
- CNS 13438, Class A
- KS C 9832, Class A
- AS/NZS CISPR 32, Class A
Immunity
BS/EN 55035, CISPR 35, KS C 9835
Generic
EN 55035, CISPR 35
EN
EN/IEC 61000-4-2
ESD
EN/IEC 61000-4-3
Radiated
EN/IEC 61000-4-4
EFT/Burst
EN/IEC 61000-4-5
Surge
EN/IEC 61000-4-6
Conducted
EN/IEC 61000-4-8
Power frequency magnetic field
EN/IEC 61000-4-11
Voltage dips and interruptions
EN/IEC 61000-3-2
Harmonics
EN /IEC 61000-3-3
Device Management
Unmanaged
Mounting
Mounting positions and supported racking
- Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
- Supports table-top mounting
- Supports rack-mounting using the brackets provided
- Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
- Supports under-table mounting using the brackets provided
- Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
EAN: 190017602202
I/O ports and slots
16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Dimensions
260(d) x 275(w) x 44(h) mm
Weight
4.60 lb (2.09 kg)
Processor and Memory
128Kb EEPROM; Packet buffer size: 2.0 Mb
100 Mb latency
< 2.7 µSec
1000 Mb latency
< 1.80 µSec
Throughput (Mpps)
23.80 Mpps
Capacity
32 Gbps
MAC address table size
8192 entries
Reliability MTBF (years)
126.1
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity
15% to 90% @ 149°F (65°C) non-condensing
Altitude
up to 10,000 ft (3 km)
Acoustics
Fanless
Frequency
50Hz/60Hz
AC voltage
100-127VAC / 200- 240VAC
Current
1.7A /0.8A
Maximum power rating
147W
Idle power
5W
PoE power
124W Class 4 PoE
Power Supply
Internal Power Supply
Safety
- EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
- EN/IEC 62368-1, 2nd. & 3rd. Ed.
- UL 62368-1, 3rd. Ed.
- CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
- EN/IEC 60825- 1:2014 Class 1
Emissions
- EN 55032:2015/ CISPR 32, Class A
- FCC CFR 47 Part 15: 2018, Class A
- ICES-003, Class A
- VCCI-32, Class A
- CNS 13438, Class A
- KS C 9832, Class A
- AS/NZS CISPR 32, Class A
Immunity
BS/EN 55035, CISPR 35, KS C 9835
Generic
EN 55035, CISPR 35
EN
EN/IEC 61000-4-2
ESD
EN/IEC 61000-4-3
Radiated
EN/IEC 61000-4-4
EFT/Burst
EN/IEC 61000-4-5
Surge
EN/IEC 61000-4-6
Conducted
EN/IEC 61000-4-8
Power frequency magnetic field
EN/IEC 61000-4-11
Voltage dips and interruptions
EN/IEC 61000-3-2
Harmonics
EN /IEC 61000-3-3
Device Management
Unmanaged
Mounting
Mounting positions and supported racking
- Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
- Supports table-top mounting
- Supports rack-mounting using the brackets provided
- Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
- Supports under-table mounting using the brackets provided
- Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
EAN: 190017602202
Parametry
| Výrobce | HPE |
| Do racku | ano |
| Úroveň správy | bez správy (unmanaged) |
| Vyrovnávací paměť (buffer) | 250 kB |
| Přepínací kapacita | 32.0 Gbps |
| Přepínací vrstva | L2 |
| Hloubka | 26 cm |
| Hmotnost | 2090 g |
| Šířka | 28 cm |
| Výška | 4 cm |
| Bez ventilátoru (fanless) | ano |
| S podporou PoE | ano |
| PoE (802.3af) | ano |
| Počet PoE portů | 16 |
| Celkový výkon PoE | 124 W |
| QoS (Quality of Service) | ano |
| Počet LAN portů 1 Gb/s | 16 |
| Počet LAN portů 100 Mb/s | 16 |
| Počet SFP portů | 0 |
