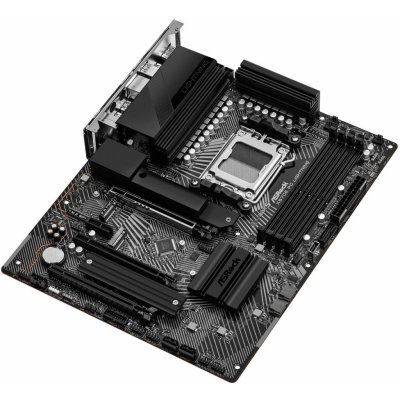

ASRock X670E PG LIGHTNING

0 %

(0 hodnocení)

Koupit za 14 579 Kč

Od nejoblíbenějších
Od nejlevnějších
Od nejdražších

ASROCK X670E PG Lightning

Doprava: zdarma Skladem

5 817 Kč Koupit za 5 817 Kč

64 %

ASRock - X670E PG LIGHTNING

Doprava: zdarma

14 579 Kč Koupit za 14 579 Kč

Popis

X670E PG Lightning
Supports AMD Ryzen™ 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 6600+(OC)
1 PCIe 5.0 x16,
2 PCIe 4.0 x16,
1 PCIe 4.0 x1,
1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
1 Ultra M.2 (PCIe Gen3x4 & SATA3),
1 M.2 (PCIe Gen4x2),
4 SATA3
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
10 USB 3.2 Gen1 (6 Rear, 4 Front)
Realtek 2.5G LAN

Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
Rock-Solid Durability
- Server-Grade Low-Loss PCB
- 14+2+1 Power Phase, 70A SPS for VCore+SOC
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

CPU
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

Chipset
- AMD X670

Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)*
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire™
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
*Supports NVMe SSD as boot disks

Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***CPU_FAN1 supports the fan power up to 1A (12W).
****CPU_FAN2/WP supports the fan power up to 2A (24W).
*****CHA_FAN1~4/WP support the fan power up to 2A (24W)
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
- 1 x User Manual
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket

Form Factor
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB

OS
- Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Zobrazit více

Parametry

Integrované grafické jádro	ano
Patice	Socket AM5
Výrobce	ASRock
Integrovaná zvuková karta	7.1
Chipset	AMD X670
Pro procesory	AMD
Herní	ano
Maximální velikost paměti	128 GB
Počet paměťových slotů	4
Podporované pamětí	DDR5
Maximální frekvence operační paměti	6600 MHz
Počet SATA konektorů	4
Druhy RAID polí	10
Počet slotů PCI	0
Počet slotů PCI-Express 1x	1
Počet slotů PCI-Express 16x	3
Rozměry základní desky	305 x 244 mm
Formát základní desky	ATX
Počet USB	1
Počet LAN	1
Wi-Fi	ne
M.2	ano
