PRIME B450M-A II AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A, BIOS FlashBack™, and Aura Sync RGB lighting support Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+ Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A 5X Protection III: Multiple hardware safeguards for all-around system protection Aura Sync RGB Lighting: Onboard connector for RGB LED strips, easily synced... Celý popis

Koupit za 1 921 Kč
  • Od nejoblíbenějších
  • Od nejlevnějších
  • Od nejdražších
Zobrazit další nabídky

Popis

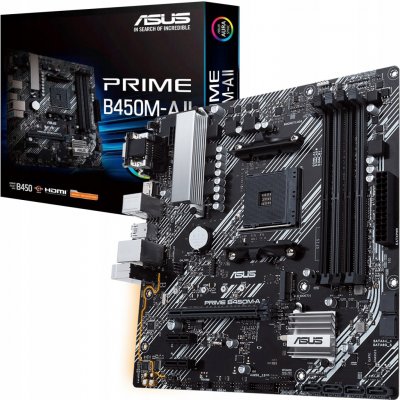

PRIME B450M-A II
AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A, BIOS FlashBack™, and Aura Sync RGB lighting support

Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 2 Type-A
5X Protection III: Multiple hardware safeguards for all-around system protection
Aura Sync RGB Lighting: Onboard connector for RGB LED strips, easily synced with an ever-growing portfolio of Aura Sync-capable hardware

TECHNICAL SPECIFICATIONS

CPU
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors ** Refer to www.asus.com for CPU support list

Chipset
AMD B450

Memory
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).* The maximum memory frequency supported varies by processor.

Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *1 x D-Sub1 x DVI-D1 x HDMI 2.0b*Graphics specifications may vary between CPU types.

Expansion Slots
3rd/2nd/1st Gen AMD Ryzen™ Processors1 x PCIe 3.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0 x16 (x8 mode)

AMD Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 3.0 x16 (x4 mode)

AMD B450 chipset2 x PCIe 2.0 x1

Storage
Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *11 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

Athlon™ with Radeon™ Vega Graphics Processors: *11 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors:2 x SATA 6Gb/s port(s),Support Raid 0, 1, 10

AMD B450 chipset:4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10

LAN
Realtek RTL8111HASUS LANGuard

Audio
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature:- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports
Rear USB Port (Total 6 )2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

Front USB Port (Total 6)2 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s)

Software Features
ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA SyncAI Suite 3- Performance and Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan Xpert 2+PC Cleaner- EZ update- System InformationASUS CPU-ZAI ChargerASUS EZ InstallerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode

ASUS Special Features
ASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LEDAURA Sync- AURA RGB headerASUS Lighting Control

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)4 x USB 3.2 Gen 1 (blue) Type-A3 x Audio jack(s)1 x BIOS FlashBack™ Button(s)

Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19 pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x SPI TPM header1 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)1 x COM port header1 x Speaker connector1 x RGB Header

Accessories
User´s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x M.2 Screw Package1 x Supporting DVD

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Operating System
Windows 10 64-bitWindows 7 64-bit *2

Form Factor
mATX Form Factor9.6 inch x 9.5 inch (24.4 cm x 24 cm)

Note
1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed.2*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
