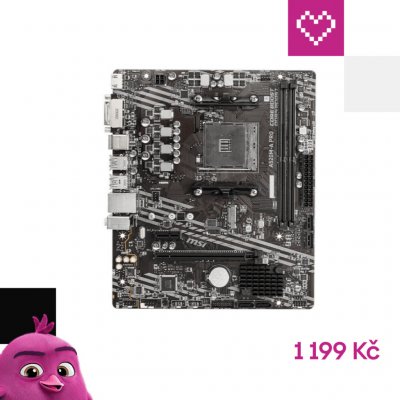

MSI A520M-A PRO
92 %
A520M-A PRO - Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors - Supports DDR4 Memory, up to 4600(OC) MHz - Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs - Core Boost: With premium layout and digital power design to support more cores and provide better performance. - DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability. - 2oz Thickened Copper PCB: An enhanced... Celý popis
Koupit za 1 249 Kč- Od nejoblíbenějších
- Od nejlevnějších
- Od nejdražších
94 %
MSI A520M-A PRO - AMD A520
Doprava:
59 Kč
Skladem
1 249 Kč
Koupit za 1 249 Kč
96 %
MSI A520M-A PRO/AM4/mATX
Doprava:
59 Kč
Skladem
1 357 Kč
Koupit za 1 357 Kč
96 %
MSI A520M-A PRO; A520M-A PRO
Doprava:
49 Kč
Skladem
1 890 Kč
Koupit za 1 890 Kč
96 %
Základní deska MSI A520M PRO (A520M PRO)
Doprava:
zdarma
Skladem
1 890 Kč
Koupit za 1 890 Kč
93 %
MSI A520M-A PRO
Doprava:
99 Kč
Skladem
1 783 Kč
Koupit za 1 783 Kč
Popis
A520M-A PRO
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
TECHNICAL SPECIFICATIONS
Socket AM4 CPU Support Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors Chipset AMD A520 Chipset Memory
- 2x DDR4 memory slots, support up to 64GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
Expansion Slot
- 1x PCIe x16 slot
- 1x PCIe 3.0 x1 slots
Onboard Graphics
- 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
- 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
- Maximum shared memory of 16 GB
Storage
AMD A520 Chipset
- 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 3.0
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD A520 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
Realtek ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek RTL8111H Gigabit LAN controller
Internal Connectors
- 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1xTPM module connector
- 1x Clear CMOS jumper
Back Panel Ports
- LAN port
- HDMI
- DVI-D
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0 Ports
- Audio Connectors
Dimensions
- M-ATX Form Factor
- 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Mounting
- 8 mounting holes
Box Content
- A520M-A Pro
- Quick Installation Guide
- MSI Case Badge
- 2x SATA Cables
- Product Registration Card
- I/O Shielding
- Driver DVD
Form Factor m-ATX Operating System Support for Windows 10 64-bit
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
TECHNICAL SPECIFICATIONS
Socket AM4 CPU Support Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors Chipset AMD A520 Chipset Memory
- 2x DDR4 memory slots, support up to 64GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
Expansion Slot
- 1x PCIe x16 slot
- 1x PCIe 3.0 x1 slots
Onboard Graphics
- 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
- 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
- Maximum shared memory of 16 GB
Storage
AMD A520 Chipset
- 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 3.0
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD A520 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO
Realtek ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek RTL8111H Gigabit LAN controller
Internal Connectors
- 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1xTPM module connector
- 1x Clear CMOS jumper
Back Panel Ports
- LAN port
- HDMI
- DVI-D
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0 Ports
- Audio Connectors
Dimensions
- M-ATX Form Factor
- 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Mounting
- 8 mounting holes
Box Content
- A520M-A Pro
- Quick Installation Guide
- MSI Case Badge
- 2x SATA Cables
- Product Registration Card
- I/O Shielding
- Driver DVD
Form Factor m-ATX Operating System Support for Windows 10 64-bit
Parametry
| Integrované grafické jádro | ne |
| Patice | Socket AM4 |
| Výrobce | MSI |
| Integrovaná zvuková karta | 7.1 |
| Chipset | AMD A520 |
| Pro procesory | AMD |
| Herní | ne |
| Počet paměťových slotů | 2 |
| Podporované pamětí | DDR4 |
| Počet slotů PCI | 0 |
| Počet slotů PCI-Express 1x | 1 |
| Počet slotů PCI-Express 16x | 1 |
| Druhy RAID polí | Ano |
| Počet USB | 4 |
| Počet LAN | 1 |
| Formát základní desky | micro ATX (mATX) |
| Bluetooth | ne |
| Wi-Fi | ne |
| Integrovaná síťová karta | ano |
| M.2 | ano |
