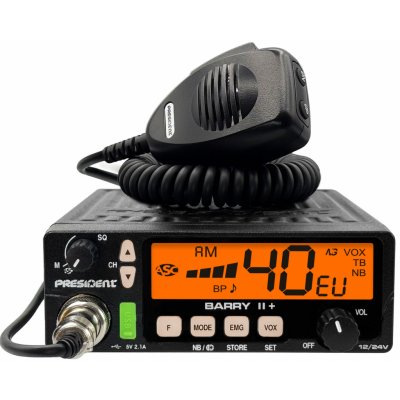

PRESIDENT BARRY II FM ASC 12/24 V
Doprava:
zdarma
Skladem
2 141 Kč
Koupit za 2 141 Kč
94 %
President BARRY II FM ASC 12/24 V
Doprava:
59 Kč
Skladem
2 990 Kč
Koupit za 2 990 Kč
100 %
President BARRY II FM ASC 12/24 V
Doprava:
116 Kč
3 963 Kč
Koupit za 3 963 Kč
95 %
President BARRY II FM ASC 12/24 V
Doprava:
59 Kč
3 648 Kč
Koupit za 3 648 Kč
94 %
President BARRY II FM ASC 12/24 V
Doprava:
59 Kč
3 648 Kč
Koupit za 3 648 Kč
Popis
-
- 40 channels AM / FM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Public Address
- Talkback
- ANL filter, NB
- Compander
- F function key
- Beep Function
- Roger Beep
- VOX
- Noise Gate
- Mode switch AM / FM
- Preset channel programmable
- TOT (Time out timer)
- Front microphone plug
- External loudspeaker jack
Osvětlení displeje:
Technical characteristics
General
Number of channels
:
40
Modulation modes
:
AM / FM
Frequency ranges
:
from 26.965 MHz to 27.405 MHz
Antenna impedance
:
50 ohms
Power supply
:
12 V / 24 V
Size
:
125 (W) x 180 (D) x 45 (H)
Weight
:
0.9 kg
Accessories supplied
:
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws
Filter
:
ANL (Automatic Noise Limiter) built-in
Transmission
Frequency allowance
:
+/- 200 Hz
Carrier power
:
4 W AM / 4 W FM
Transmission interference
:
inferior to 4 nW (- 54 dBm)
Audio response
:
300 Hz to 3 KHz
Emitted power in the adj. channel
:
inferior a 20 μW
Microphone sensitivity
:
7 mV
Drain
:
1,7 A at 13,2 V / 0,85 A at 26,4 V
Modulated signal distortion
:
2 %
Reception
Maxi. sensitivity at 20 dB sinad
:
0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
Frequency response
:
300 Hz to 3 kHz
Adjacent channel selectivity
:
60 dB
Maximum audio power
:
2.5 W
Squelch sensitivity
:
mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
Frequency image rejection rate
:
60 dB
Intermediate frequency rej. rate
:
70 dB
Drain
:
160 ~ 420 mA (13,2 V) ;100 ~ 250 mA (26,4 V)
Návod na obsluhu zde
- 40 channels AM / FM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Public Address
- Talkback
- ANL filter, NB
- Compander
- F function key
- Beep Function
- Roger Beep
- VOX
- Noise Gate
- Mode switch AM / FM
- Preset channel programmable
- TOT (Time out timer)
- Front microphone plug
- External loudspeaker jack
Osvětlení displeje:
Technical characteristics
General
Number of channels
:
40
Modulation modes
:
AM / FM
Frequency ranges
:
from 26.965 MHz to 27.405 MHz
Antenna impedance
:
50 ohms
Power supply
:
12 V / 24 V
Size
:
125 (W) x 180 (D) x 45 (H)
Weight
:
0.9 kg
Accessories supplied
:
1 microphone UP/DOWN and its hanger
1 mounting bracket with fixing screws
Filter
:
ANL (Automatic Noise Limiter) built-in
Transmission
Frequency allowance
:
+/- 200 Hz
Carrier power
:
4 W AM / 4 W FM
Transmission interference
:
inferior to 4 nW (- 54 dBm)
Audio response
:
300 Hz to 3 KHz
Emitted power in the adj. channel
:
inferior a 20 μW
Microphone sensitivity
:
7 mV
Drain
:
1,7 A at 13,2 V / 0,85 A at 26,4 V
Modulated signal distortion
:
2 %
Reception
Maxi. sensitivity at 20 dB sinad
:
0,5 µV - 113 dBm AM / 0,35 µV - 116 dBm FM
Frequency response
:
300 Hz to 3 kHz
Adjacent channel selectivity
:
60 dB
Maximum audio power
:
2.5 W
Squelch sensitivity
:
mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
Frequency image rejection rate
:
60 dB
Intermediate frequency rej. rate
:
70 dB
Drain
:
160 ~ 420 mA (13,2 V) ;100 ~ 250 mA (26,4 V)
Návod na obsluhu zde
Parametry
| Výrobce | President |
| Hmotnost | 0.9 kg |
| Rozměry | 125 x 180 x 45 mm |
| Modulace | AM / FM |
| Počet kanálů | 40 |
| Pásmo | CB |
| Baterie | 12 / 24 |
| Hlasové ovládání | ano |
